Conveyor Commercial Dishwasher
>
|
|
| Place of Origin | China |
| Brand Name | HENGZE |
| Certification | CE |
| Model Number | HZ-60AS |

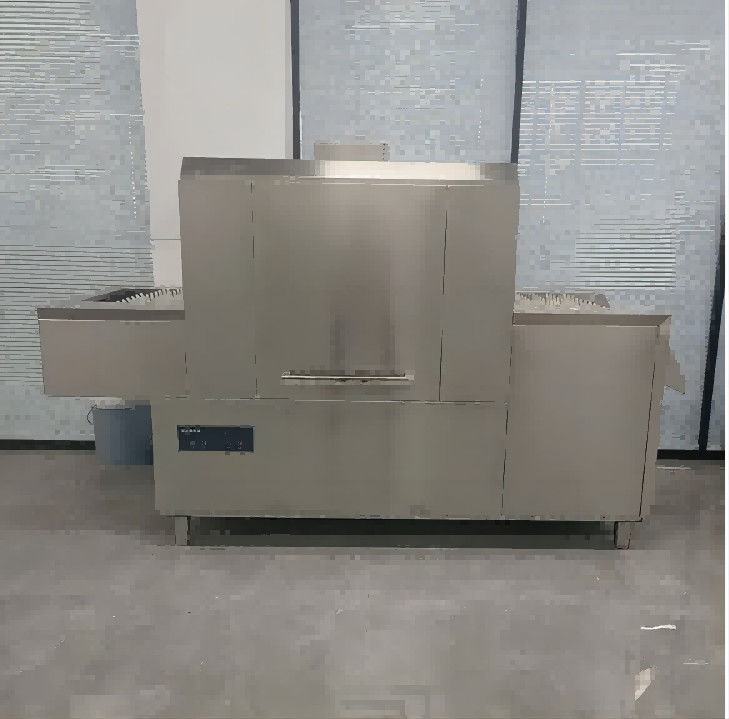

Commericial smart Conveyor Commercial Dishwasher
Quick Details
| Incoming water temperatu | ℃ | 10 |
| Washing cycle selecti | 3(220V)/2(380 | |
| Washing capacity(R/H) | 45~60 | |
| Main wash | ||
| Wash tank volu | L | 25 |
| Main wash | KW | 2 |
| Wash pu | KW | 0.75 |
| Wash temperature | ℃ | 60~75 |
| Rinse | ||
| Rinse pump | KW | |
| Rinse temperature | ℃ | 82~95 |
| Rinse heater | KW | 4.5(220V)/9(380V) |
| Water consumption per rack | L | 1.6 |
Production Description:
The general principle of spray cleaning is: after the water enters the dishwasher through the pipe, it is rapidly heated by the heating element at the bottom of the dishwasher to meet the cleaning temperature requirements.
At the same time, the dishwasher automatically distributes dishwashing detergent and fully mixes it with water, and outputs it to the spray arm through the water pump. Driven by the high pressure of the water pump, the upper and lower spray arms directly wash the surface of the tableware in a spray state.
Specifications:
| Model No | 203E |
| Product Name | Rack Conveyor Dishwasher |
| Performance | |
| External Dimension(mm) | |
| Length×Width×Height | 1105x772x1650 |
| Electrial | |
| Rated Voltage(V/N/Hz) | 380/3/50 |
| Rated Power (kW) | 43.75 |
| Electric Current(A) | 66.5 |
| Main Heating Power(kW) | 12 |
| Main Wash Pump Power(kW) | 1.5 |
| Rinse Heating Power(kW) | 30 |
| Configuration | |
| Water Tank Capacity(L) | 75 |
| Power Line Specifications(mm) | 25 |
| Water Inlet(DN) | 20 |
| Drainage(DN) | 50 |
| Water Pressure(MPa) | 0.1 ～ 0.35 |
| Water Main Wash Temperature(℃) | 55-65 |
| Water Rinse Temperature(℃) | 82~90 |
| Water Inlet Temperature(℃) | 10~60 |
| Minimum Water Flow(L/H) | 405 |
| Exhaust Inlet(m3/min) | 5.7 |
| Exhaust Outlet(m3/min) | 11.3 |
| Packing Size(mm) | 1215*850*1770 |
| Net Weight(kg) | 218 |
| Gross Weight(kg) | 280 |
About Us:
Guangdong Hengze Commercial Kitchen Equipment Co., Ltd.. was established in 2016 and located in Shunde Foshan, China. It is a leading enterprise in the commercial dishwasher equipment industry with strong technical strength and complete production lines.
We are a professional manufacturer specialized in commercial dishwasher equipment with many years experiences. Now we have 4 main dishwasher products including hood type dishwasher, rack conveyor dishwasher and Long line conveyor dishwasher,Bubble Washing Machine . High quality is the most important point for us to make sure our final customers have perfect satisfied using experience. By now, we have cooperated with many Hotels, Schools, Company groups, Hospitals and Restaurants also we have exported our dishwasher into many countries out of China rely on the advantage of our competitive price, high quality, fast producing and delivery.
Hengze has been committed to providing international standard quality commercial dishwasher products and one-stop solutions for all partners. We have the most advanced laser cutting machine, bending machine. From product development to production inspection, we have a complete set of quality control process. Also we have obtained CE ISO14001 ISO9001 certification. Selling well in all cities and provinces around China, the products are also exported to customers all of the world as the United States, Japan, Malaysia, Thailand, Singapore, Qatar, India, Africa, Kazakhstan and Saudi Arabia.
We have an experienced products development team making sure to provide OEM/ODM service with high-quality. Whether selecting a current product from our catalog or seeking engineering assistance for your requirement you can talk to our customer service center about your sourcing requirements. We must provide you professional services with nice price, high quality and fast delivery.
