380V Industrial Dish Washing Machine Dishwasher Conveyor Rack CE
  • 380V Industrial Dish Washing Machine Dishwasher Conveyor Rack CE
  • 380V Industrial Dish Washing Machine Dishwasher Conveyor Rack CE

380V Industrial Dish Washing Machine Dishwasher Conveyor Rack CE

Place of Origin China
Brand Name HENGZE
Certification CE
Model Number HZ-60AS
Product Details
Application Control ::
In Opptional
Use Range::
Home/commercial Kitchen Appliance
Packing::
Standard Wooden Case
Payment Term:
T/T Or Western Union
High Light:

380V Industrial Dish Washing Machine

,

Industrial Dish Washing Machine CE

,

Washing Machine Dishwasher Conveyor

Product Description
Rack Conveyor Type Industrial Dish Washing Machine Efficient Cleaning Dishwasher For Kitchen Appliance


Detailed Product Description



Rack Convoyer Dishwasher Application

Dishwasher Machine Ideal for medium and small hotels ,coffee shops,chain restaurants and dining halls kitchen glass,cups and plates cleaning

Hood Type Dishwasher Features:

1. Flexible wash cycle:Flexible choices:A)6.5KW(68s/75s/80s),B)11KW(50s/60s),satisfy different ware wash needs

2. Special wash pump : Ensuring consistent wash water volume and detergent use, cost control made easy

3. Digital temperature controller and display:Front controller, simple button design and bright LCD temperature indicator,easy to operate

4. After dishwashs arrive at the site(for rack conveyor and long chain dishwashers)





Quick Details

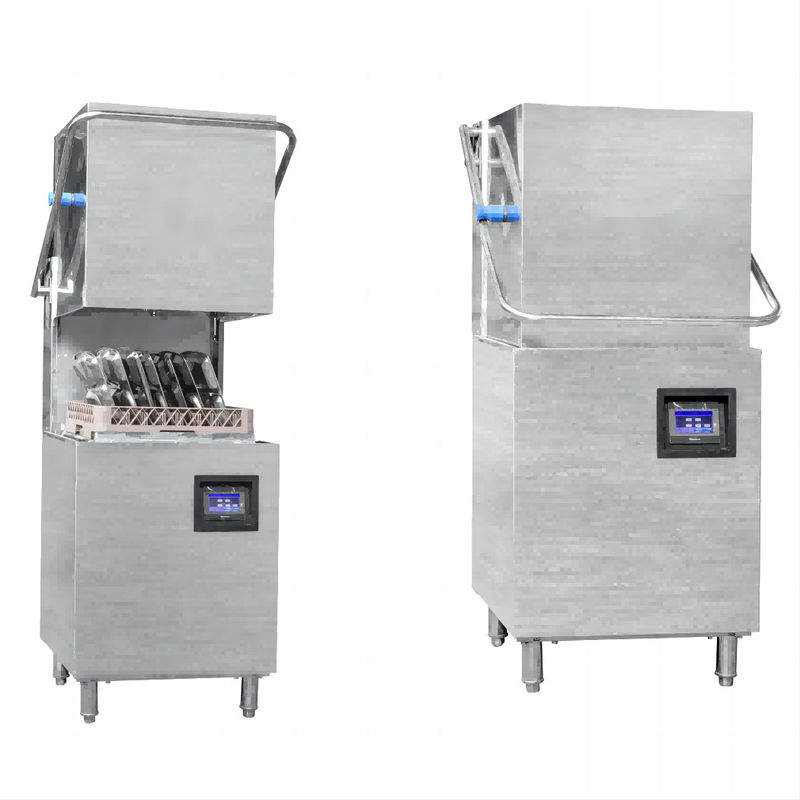

Product Industrial Electric Hood Type Dishwasher
Size(mm) 664*635*1429
Output 60 basket/ hour
Washing tank capacity 39L
High temperature tank power 9KW
Washing tank power 3KW
Total power 12.75KW
Voltage 380V
Package Carton or crate outside
Payment term T/T or Western Union
Lead time It depends. About 15 working days.
Certificate CE







Features
● Applicable to social catering, staff canteen and other venues;
● Compact structure, saving operating space;
● Clear operation panel, mechanical buttons and LED digital temperature display;
● The uniquely designed 8-shaped concave anti-clogging nozzle is equipped with 9 washing arms for better cleaning effect;
● Excellent temperature control function to ensure the cleaning temperature is 55°C and the spraying temperature is above 82°C to achieve better cleaning effect;
● The adjustment of the water inlet pressure regulating valve is simpler and quicker to adjust the water inlet pressure of the machine;
● Fully automatic water injection and replenishment, automatic water level control to prevent dry burning;
● The cleaning arm and spray arm are easy to disassemble and clean, no auxiliary tools are needed, and the maintenance work is simpler;
● The cleaning tank is equipped with an overflow pipe, which has an automatic overflow function, and the drainage operation is simpler;
● The IRON-MAX system has a 120° fan-shaped water spray range and a precise water spray pattern, which maintains the best angle for rinsing the tableware, so that each tableware in the basket can be rinsed evenly and completely

Main application scenarios

Applicable to Chinese restaurants in hotels with 300-800 people, large and medium-sized social restaurants, food

Gas heater accessories can be selected to further reduce energy consumption and use threshold





Lengthxwidth×Height 835x715x1440
Rated Voltage(V/N/Hz)   380/3/50
Rated Power(kW)  5.73
Electric Current(A)  8.7
Main Heating Power(kW)  3
Main Wash Pump Power(kW)  0.73
Rinse Heating Power(kW)  5
Rinse Pump Power(kW)  0.15
Configuration
Water Tank Capacity(L)  25
Heat Tank Capadity(L)  10
Power Line Specifications(mm2)  4
PowerLine Length(m)  3
Water lnlet(DN  20
Drainage(DN)  32
Water Pressure(MPa)  0.15-0.35
Water MainWash Temperature(°C)  55-65
Water Rinse Temperature(C)  82-90
Water Inlet Temperature(C)  20-60
Enter Water Hardness(Mg/L)  34~103
Minimum Water Flow(L/H)  150
Washing Cyle  60/90/120
Packing Size(mm)  840*770"1560
Net Weight(kg)  123
Gros5Weight(kg  133





Advantages and Characteristics.



1.Double layer construction, low noise, better heat insulation effect
2.Upper and lower rotating washing and rinse system. Washing more reasonable.
3.Mechanical button design easy to operate
4.Reliable conveyor system with automatic overload protection device so that dishes and plates can be directly put on the track, thus no need to sort wares and put them in the baskets, greatly reducing labor intensity and working time.
5.Exit end is equipped with limit switch to avoid damages on the wares when nobody takes them off the conveyor
6.It's convenient to assemble and disassemble up/down washing arms. It can be locked tightly with a buckle
7.With flexible modular design you can choose suitable model according to the size of the location.









380V Industrial Dish Washing Machine Dishwasher Conveyor Rack CE 0380V Industrial Dish Washing Machine Dishwasher Conveyor Rack CE 1



380V Industrial Dish Washing Machine Dishwasher Conveyor Rack CE 2

380V Industrial Dish Washing Machine Dishwasher Conveyor Rack CE 3

380V Industrial Dish Washing Machine Dishwasher Conveyor Rack CE 4

380V Industrial Dish Washing Machine Dishwasher Conveyor Rack CE 5
