Conveyor Commercial Dishwasher
>
|
|
| Place of Origin | China |
| Brand Name | HENGZE |
| Certification | CE |
| Model Number | HZ-2400 |

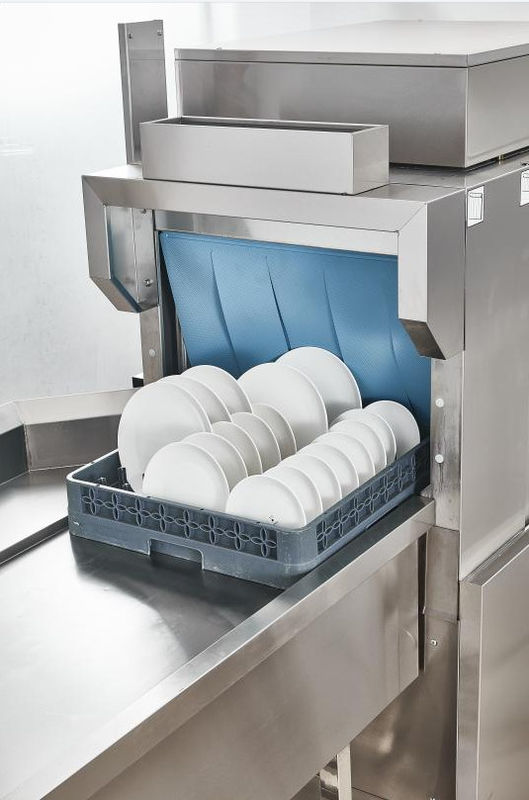

Conveyor Commercial Type Multifunction Household Automatic Dishwasher For Hotels
Quick Details:
| Power Source:Electric | Inner Material:Stainless steel |
| Conveyor Speed:1.5m/min | Place of Origin:Guangdong, China |
| Certification:ISO/CE | Tank Capacity:98L |
Rack Conveyor Dishwasher Advantages:
Features
1 Applicable to social catering, staff canteen and other venues;
2 Compact structure, saving operating space;
3 Clear operation panel, mechanical buttons and LED digital temperature display;
4 Uniquely designed 8-shaped concave anti-blocking nozzle, equipped with 9 washing arms, the cleaning effect is better;
5 Good temperature control function, ensure the cleaning temperature is 55°C, and the spraying temperature is above 82°C, to achieve better cleaning effect;
6. The adjustment of the water inlet pressure regulating valve is simpler, and the water inlet pressure of the machine can be adjusted quickly;
7. Fully automatic water injection and replenishment, automatic control of water level to prevent dry burning;
8 The cleaning arm and spray arm are easy to disassemble and clean, no auxiliary tools are needed, and the maintenance work is simpler;
9 The cleaning cylinder is equipped with an overflow pipe, which has an automatic overflow function, and the drainage operation is simpler;
10 The IRON-MAX system has a 120° fan-shaped water spray range and a precise water spray pattern to keep the tableware at the best angle for rinsing, so that each tableware in the basket can be evenly and completely rinsed;
Specifications:
| Model No | 203E |
| Product Name | Rack Conveyor Dishwasher |
| Performance | |
| External Dimension(mm) | |
| Length×Width×Height | 1105x772x1650 |
| Electrial | |
| Rated Voltage(V/N/Hz) | 380/3/50 |
| Rated Power (kW) | 43.75 |
| Electric Current(A) | 66.5 |
| Main Heating Power(kW) | 12 |
| Main Wash Pump Power(kW) | 1.5 |
| Rinse Heating Power(kW) | 30 |
| Configuration | |
| Water Tank Capacity(L) | 75 |
| Power Line Specifications(mm) | 25 |
| Water Inlet(DN) | 20 |
| Drainage(DN) | 50 |
| Water Pressure(MPa) | 0.1 ～ 0.35 |
| Water Main Wash Temperature(℃) | 55-65 |
| Water Rinse Temperature(℃) | 82~90 |
| Water Inlet Temperature(℃) | 10~60 |
| Minimum Water Flow(L/H) | 405 |
| Exhaust Inlet(m3/min) | 5.7 |
| Exhaust Outlet(m3/min) | 11.3 |
| Packing Size(mm) | 1215*850*1770 |
| Net Weight(kg) | 218 |
| Gross Weight(kg) | 280 |
About Us:
Guangdong Hengze Commercial Kitchen Equipment Co., Ltd.. was established in 2016 and located in Shunde Foshan, China. It is a leading enterprise in the commercial dishwasher equipment industry with strong technical strength and complete production lines.
We are a professional manufacturer specialized in commercial dishwasher equipment with many years experiences. Now we have 4 main dishwasher products including hood type dishwasher, rack conveyor dishwasher and Long line conveyor dishwasher,Bubble Washing Machine . High quality is the most important point for us to make sure our final customers have perfect satisfied using experience. By now, we have cooperated with many Hotels, Schools, Company groups, Hospitals and Restaurants also we have exported our dishwasher into many countries out of China rely on the advantage of our competitive price, high quality, fast producing and delivery.
Hengze has been committed to providing international standard quality commercial dishwasher products and one-stop solutions for all partners. We have the most advanced laser cutting machine, bending machine. From product development to production inspection, we have a complete set of quality control process. Also we have obtained CE ISO14001 ISO9001 certification. Selling well in all cities and provinces around China, the products are also exported to customers all of the world as the United States, Japan, Malaysia, Thailand, Singapore, Qatar, India, Africa, Kazakhstan and Saudi Arabia.
We have an experienced products development team making sure to provide OEM/ODM service with high-quality. Whether selecting a current product from our catalog or seeking engineering assistance for your requirement you can talk to our customer service center about your sourcing requirements. We must provide you professional services with nice price, high quality and fast delivery.
