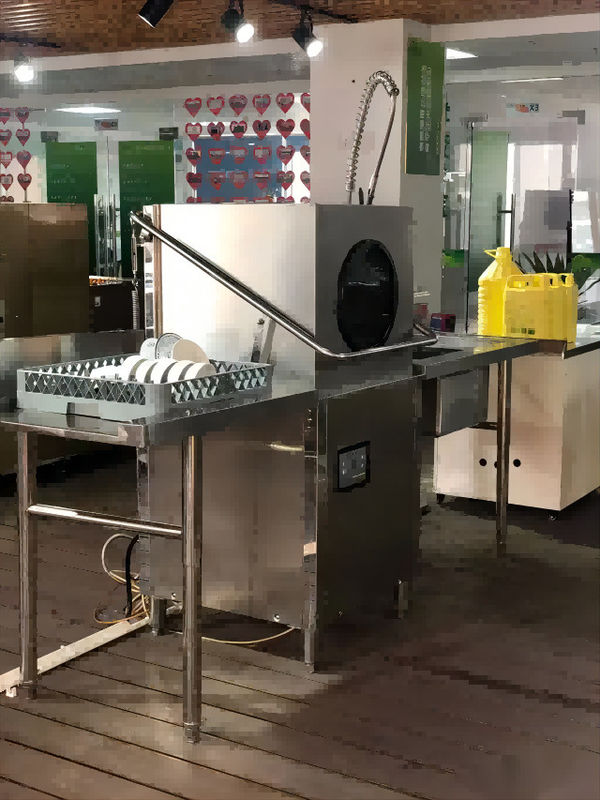

Conveyor Commercial Dishwasher
>
|
|
| Place of Origin | China |
| Brand Name | HENGZE |
| Certification | CE |
| Model Number | HZ-60AS |
| Lengthxwidth×Height | 835x715x1440 | |
| Rated Voltage(V/N/Hz) | 380/3/50 | |
| Rated Power(kW) | 5.73 | |
| Electric Current(A) | 8.7 | |
| Main Heating Power(kW) | 3 | |
| Main Wash Pump Power(kW) | 0.73 | |
| Rinse Heating Power(kW) | 5 | |
| Rinse Pump Power(kW) | 0.15 | |
| Configuration | ||
| Water Tank Capacity(L) | 25 | |
| Heat Tank Capadity(L) | 10 | |
| Power Line Specifications(mm2) | 4 | |
| PowerLine Length(m) | 3 | |
| Water lnlet(DN | 20 | |
| Drainage(DN) | 32 | |
| Water Pressure(MPa) | 0.15-0.35 | |
| Water MainWash Temperature(°C) | 55-65 | |
| Water Rinse Temperature(C) | 82-90 | |
| Water Inlet Temperature(C) | 20-60 | |
| Enter Water Hardness(Mg/L) | 34~103 | |
| Minimum Water Flow(L/H) | 150 | |
| Washing Cyle | 60/90/120 | |
| Packing Size(mm) | 840*770"1560 | |
| Net Weight(kg) | 123 | |
| Gros5Weight(kg | 133 | |
Operation process operation process
1 Cover the drain pipe;
Check whether the filter device is in place. Generally, after 10-15 times of use, the filter device must be cleaned;
2 Turn on the power switch of the machine and pull it to "1";
3 Insert the tube of the instant-dry dispenser into the medicament to check whether the medicament is sufficient;
4 Press the handle of the outer cover, close the cover tightly, and the water tank will start to fill water automatically;
5 After the water injection is completed, the machine will automatically start heating;
6. When the water tank and boiler thermometer reach the set temperature, the machine starts to clean and rinse accordingly;
Cleaning temperature 50-55℃ Rinse temperature 80-85℃
7 Before the cleaning process starts, pour a suitable amount of non-foaming liquid detergent into the water (if there is no detergent dispenser)
8 Adjust selector 3 to set the desired cleaning time
Position 1 = short time Position 2 = long time
9 Put in the washing basket, close the lid, and start the cleaning process, followed by the rinsing process; the washing process will be displayed on the running indicator light (2)
10 The running indicator light (2) goes out, indicating the end of the washing process
1.Double layer construction, low noise, better heat insulation effect
2.Upper and lower rotating washing and rinse system. Washing more reasonable.
3.Mechanical button design easy to operate
4.Reliable conveyor system with automatic overload protection device so that dishes and plates can be directly put on the track, thus no need to sort wares and put them in the baskets, greatly reducing labor intensity and working time.
5.Exit end is equipped with limit switch to avoid damages on the wares when nobody takes them off the conveyor
6.It's convenient to assemble and disassemble up/down washing arms. It can be locked tightly with a buckle
7.With flexible modular design you can choose suitable model according to the size of the location.
