Conveyor Commercial Dishwasher
>
|
|
| Place of Origin | China |
| Brand Name | HENGZE |
| Certification | CE |
| Model Number | HZ-60AS |
Detailed Product Description
Quick Details

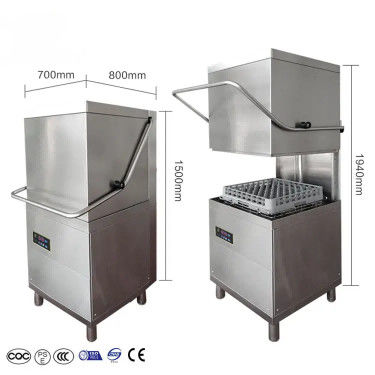

| Product | Industrial Electric Hood Type Dishwasher |
| Size(mm) | 664*635*1429 |
| Output | 60 basket/ hour |
| Washing tank capacity | 39L |
| High temperature tank power | 9KW |
| Washing tank power | 3KW |
| Total power | 12.75KW |
| Voltage | 380V |
| Package | Carton or crate outside |
| Payment term | T/T or Western Union |
| Lead time | It depends. About 15 working days. |
| Certificate | CE |
Features
● Applicable to social catering, staff canteen and other venues;
● Compact structure, saving operating space;
● Clear operation panel, mechanical buttons and LED digital temperature display;
● The uniquely designed 8-shaped concave anti-clogging nozzle is equipped with 9 washing arms for better cleaning effect;
● Excellent temperature control function to ensure the cleaning temperature is 55°C and the spraying temperature is above 82°C to achieve better cleaning effect;
● The adjustment of the water inlet pressure regulating valve is simpler and quicker to adjust the water inlet pressure of the machine;
● Fully automatic water injection and replenishment, automatic water level control to prevent dry burning;
● The cleaning arm and spray arm are easy to disassemble and clean, no auxiliary tools are needed, and the maintenance work is simpler;
● The cleaning tank is equipped with an overflow pipe, which has an automatic overflow function, and the drainage operation is simpler;
● The IRON-MAX system has a 120° fan-shaped water spray range and a precise water spray pattern, which maintains the best angle for rinsing the tableware, so that each tableware in the basket can be rinsed evenly and completely
Main application scenarios
Applicable to Chinese restaurants in hotels with 300-800 people, large and medium-sized social restaurants, food
Gas heater accessories can be selected to further reduce energy consumption and use threshold
| Lengthxwidth×Height | 835x715x1440 | |
| Rated Voltage(V/N/Hz) | 380/3/50 | |
| Rated Power(kW) | 5.73 | |
| Electric Current(A) | 8.7 | |
| Main Heating Power(kW) | 3 | |
| Main Wash Pump Power(kW) | 0.73 | |
| Rinse Heating Power(kW) | 5 | |
| Rinse Pump Power(kW) | 0.15 | |
| Configuration | ||
| Water Tank Capacity(L) | 25 | |
| Heat Tank Capadity(L) | 10 | |
| Power Line Specifications(mm2) | 4 | |
| PowerLine Length(m) | 3 | |
| Water lnlet(DN | 20 | |
| Drainage(DN) | 32 | |
| Water Pressure(MPa) | 0.15-0.35 | |
| Water MainWash Temperature(°C) | 55-65 | |
| Water Rinse Temperature(C) | 82-90 | |
| Water Inlet Temperature(C) | 20-60 | |
| Enter Water Hardness(Mg/L) | 34~103 | |
| Minimum Water Flow(L/H) | 150 | |
| Washing Cyle | 60/90/120 | |
| Packing Size(mm) | 840*770"1560 | |
| Net Weight(kg) | 123 | |
| Gros5Weight(kg | 133 | |
1.Double layer construction, low noise, better heat insulation effect
2.Upper and lower rotating washing and rinse system. Washing more reasonable.
3.Mechanical button design easy to operate
4.Reliable conveyor system with automatic overload protection device so that dishes and plates can be directly put on the track, thus no need to sort wares and put them in the baskets, greatly reducing labor intensity and working time.
5.Exit end is equipped with limit switch to avoid damages on the wares when nobody takes them off the conveyor
6.It's convenient to assemble and disassemble up/down washing arms. It can be locked tightly with a buckle
7.With flexible modular design you can choose suitable model according to the size of the location.
