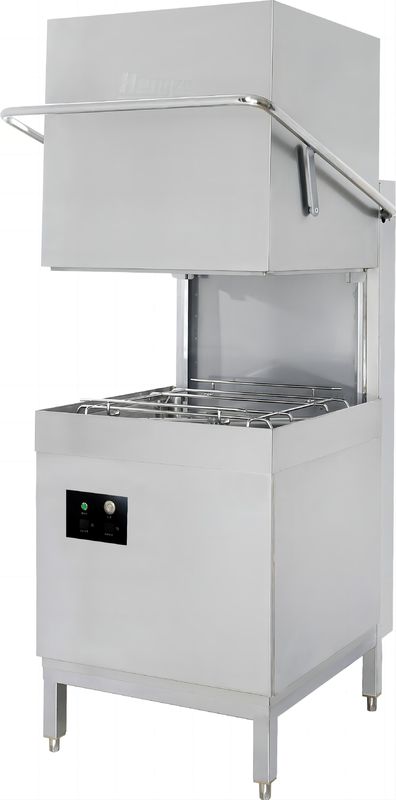

High Efficiency Commercial Restaurant Dishwasher Machine
Product Descriptions:
1. High grade stainless steel material.
2. Smooth surface and easy to operate and clean.
3. Good choice for commercial kitchen restaurant catering, such as hotel, restaurant, cafeteria, supermarket, fast food,
take-away, bar etc.
4 .Good quality and fast delivery.
5.OEM & ODM accepted.
Quick Details:
1 The main wash temperature is above 55°C, and the spray temperature is above 82°C. After washing, the tableware meets the national sanitation standard for food and beverage tableware disinfection.
2 Large-flow, high-lift special-purpose cleaning water pump for courtyard washing machines, combined with concave anti-blocking nozzles, ensures a larger range of fan-shaped water flow, and the spraying effect is strong and uniform;
3 Lightly door open design, reduce labor intensity and improve work efficiency; door control switch, close the door to wash, easy and safe to operate,Upper/lower split stainless steel wash arm, fastening and durable, flexible rotation, easy to clean and disassemble
4 Intelligent control panel, intelligent washing; mechanical single-key operation button, with LED temperature display, alarm prompt and fault diagnosis.Optional IOT module: It can remotely monitor the operation status of the equipment, prevent it in advance, reduce the failure rate of accessories as a whole, and ensure safe and worry-free use around the clock. Background parameter adjustment, remote diagnosis, remote operation and maintenance.
5 The spray tank and cleaning tank are equipped with high-efficiency heat insulation materials to reduce heat loss
6 Heat recovery technology, double-layer heat insulation cover door insulation
Specifications:
| Rated Voltage(V/N/Hz) | 380/3/50 |
| Rated Power(kW) | 5.73 |
| Electric Current(A) | 8.7 |
| Main Heating Power(kW) | 3 |
| Main Wash Pump Power(kW) | 0.73 |
| Rinse Heating Power(kW) | 5 |
| Rinse Pump Power(kW) | 0.15 |
| Water Tank Capacity(L) | 25 |
| Heat Tank Capadity(L) | 10 |
| Power Line Specifications(mm2) | 4 |
| PowerLine Length(m) | 3 |
| Water lnlet(DN | 20 |
| Drainage(DN) | 32 |
| Water Pressure(MPa) | 0.15-0.35 |
| Water MainWash Temperature(°C) | 55-65 |
| Water Rinse Temperature(C) | 82-90 |
| Water Inlet Temperature(C) | 20-60 |
| Enter Water Hardness(Mg/L) | 34~103 |
| Minimum Water Flow(L/H) | 150 |
| Washing Cyle | 60/90/120 |
| Packing Size(mm) | 840*770"1560 |
| Net Weight(kg) | 123 |
| Gros5Weight(kg | 133 |
Features:
Guangdong Hengze Commercial Kitchen Equipment Co., Ltd.. was established in 2016 and located in Shunde Foshan, China. It is a leading enterprise in the commercial dishwasher equipment industry with strong technical strength and complete production lines.
We are a professional manufacturer specialized in commercial dishwasher equipment with many years experiences. Now we have 4 main dishwasher products including hood type dishwasher, rack conveyor dishwasher and Long line conveyor dishwasher,Bubble Washing Machine . High quality is the most important point for us to make sure our final customers have perfect satisfied using experience. By now, we have cooperated with many Hotels, Schools, Company groups, Hospitals and Restaurants also we have exported our dishwasher into many countries out of China rely on the advantage of our competitive price, high quality, fast producing and delivery.
Hengze has been committed to providing international standard quality commercial dishwasher products and one-stop solutions for all partners. We have the most advanced laser cutting machine, bending machine. From product development to production inspection, we have a complete set of quality control process. Also we have obtained CE ISO14001 ISO9001 certification. Selling well in all cities and provinces around China, the products are also exported to customers all of the world as the United States, Japan, Malaysia, Thailand, Singapore, Qatar, India, Africa, Kazakhstan and Saudi Arabia.
We have an experienced products development team making sure to provide OEM/ODM service with high-quality. Whether selecting a current product from our catalog or seeking engineering assistance for your requirement you can talk to our customer service center about your sourcing requirements. We must provide you professional services with nice price, high quality and fast delivery.
