Rack Conveyor Dishwasher
>
|
|
| Place of Origin | China |
| Brand Name | HENGZE |
| Certification | CE |
| Model Number | HZ-203 |

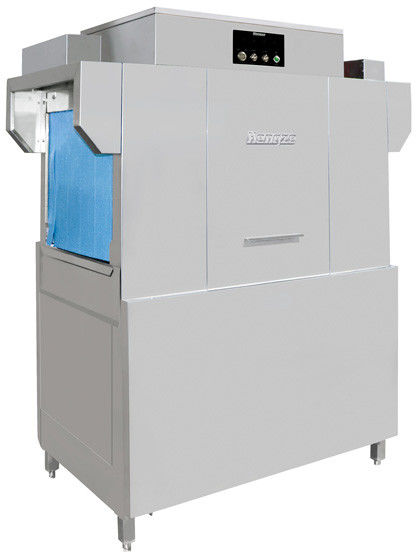

Customized Rack Conveyor DishWasher Machine for Hospital Canteen
Main Features:
1 Suitable for social catering, staff canteen and other venues
2 Compact structure, saving operating space;
3 Clear operation panel, mechanical buttons and LED digital temperature display
4 The uniquely designed 8-shaped concave anti-blocking nozzle is equipped with 9 washing arms for better cleaning effect;
5 Good temperature control function ensures that the cleaning temperature is 55°C and the spraying temperature is above 82°C to achieve a better cleaning effect;
6 The adjustment of the water inlet pressure regulating valve is simpler, and the water inlet pressure of the machine can be adjusted quickly;
7 Fully automatic water injection and replenishment, automatic water level control to prevent dry burning
8 The cleaning arm and spray arm are easy to disassemble and clean, no auxiliary tools are required, and the
Specifications:
Quick Details
After-sales Service Provided: Free spare parts Warranty: 1 Year
Application: Hotel, Commercial Power Source: Electric
App-Controlled: NO Private Mold: NO
Control Type:Semi-Integrated Style:Traditional
Housing Material:Stainless steel Inner Material:Stainless steel
| Model No | 203E |
| Product Name | Rack Conveyor Dishwasher |
| Performance | |
| External Dimension(mm) | |
| Length×Width×Height | 1105x772x1650 |
| Electrial | |
| Rated Voltage(V/N/Hz) | 380/3/50 |
| Rated Power (kW) | 43.75 |
| Electric Current(A) | 66.5 |
| Main Heating Power(kW) | 12 |
| Main Wash Pump Power(kW) | 1.5 |
| Rinse Heating Power(kW) | 30 |
| Configuration | |
| Water Tank Capacity(L) | 75 |
| Power Line Specifications(mm) | 25 |
| Water Inlet(DN) | 20 |
| Drainage(DN) | 50 |
| Water Pressure(MPa) | 0.1 ～ 0.35 |
| Water Main Wash Temperature(℃) | 55-65 |
| Water Rinse Temperature(℃) | 82~90 |
| Water Inlet Temperature(℃) | 10~60 |
| Minimum Water Flow(L/H) | 405 |
| Exhaust Inlet(m3/min) | 5.7 |
| Exhaust Outlet(m3/min) | 11.3 |
| Packing Size(mm) | 1215*850*1770 |
| Net Weight(kg) | 218 |
| Gross Weight(kg) | 280 |
