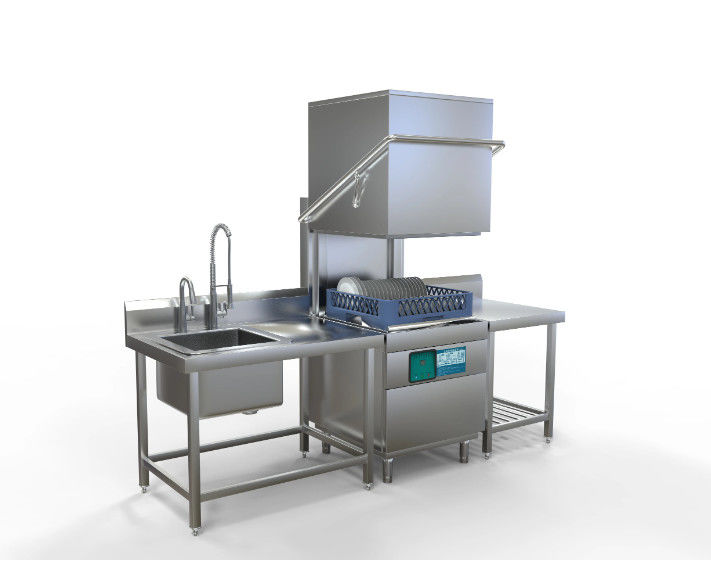

Hotel Restaurant Hood Type Industrial Commercial Rack Convoyer Dishwasher
Quick details
| Place of Origin: | Guangdong, China |
| Model Number: | HZ-60AS |
| Housing Material: | Stainless steel |
| Inner Material: | Stainless steel |
| Voltage (V): | 380 |
| Warranty: | 1 Year |
| Type: | Freestanding |
| Application: | Hotel, Commercial, Household |
| Power Source: | Electric |
| App-Controlled: | Yes |
| Style: | Drawer Dish Washer |
| Control Type: | Full-Integrated |
Rack Conveyor Dishwasher Advantages:
1 The main washing temperature is above 55°C, and the spraying temperature is above 82°C. After washing, the tableware meets the national standard for disinfection and sanitation of food (drink) utensils;
2 Specially customized cleaning water pump for large-flow and high-lift courtyard washing machines, combined with concave anti-blocking nozzles, to ensure a larger range of fan-shaped water flow, and the spray effect is strong and uniform;
3 The design of light door opening reduces labor intensity and improves work efficiency; the door control switch can be washed immediately after closing the door, which is convenient and safe to operate;
4 Upper/lower split stainless steel wash arm, fastening and durable, flexible rotation, easy to clean and disassemble;
5 High-quality stainless steel material is selected, which has the characteristics of high strength, high temperature resistance and corrosion resistance;
6 Intelligent control panel, intelligent washing paint; mechanical single-key operation button, with LED temperature display, alarm prompt and fault diagnosis;
7 Spray tank and cleaning tank are equipped with high-efficiency heat insulation materials to reduce heat loss;
8 Maintenance can be done from the front of the whole machine without moving the machine, which is fast and convenient;
9 Accessories: equipped with water inlet pipe, drain pipe, and 3-meter power cord;
The built-in liquid medicine dispenser is optional, so that the liquid medicine can be used more accurately, and the performance is outstanding while reducing loss;
Specifications:
| Model No | HZ-60AS |
| ProductName | Hood Dishwasher |
| Heating Characteristics | Intelligent section heating |
| Lengthxwidth×Height | 835x715x1440 |
| Rated Voltage(V/N/Hz) | 380/3/50 |
| Rated Power(kW) | 5.73 |
| Electric Current(A) | 8.7 |
| Main Heating Power(kW) | 3 |
| Main Wash Pump Power(kW) | 0.73 |
| Rinse Heating Power(kW) | 5 |
| Rinse Pump Power(kW) | 0.15 |
| Water Tank Capacity(L) | 25 |
| Heat Tank Capadity(L) | 10 |
| Power Line Specifications(mm2) | 4 |
| PowerLine Length(m) | 3 |
| Water lnlet(DN | 20 |
| Drainage(DN) | 32 |
| Water Pressure(MPa) | 0.15-0.35 |
| Water MainWash Temperature(°C) | 55-65 |
| Water Rinse Temperature(C) | 82-90 |
| Water Inlet Temperature(C) | 20-60 |
| Enter Water Hardness(Mg/L) | 34~103 |
| Minimum Water Flow(L/H) | 150 |
| Washing Cyle | 60/90/120 |
| Packing Size(mm) | 840*770"1560 |
| Net Weight(kg) | 123 |
| Gros5Weight(kg | 133 |
