Automatic Dishwasher Machine
>
|
|
| Place of Origin | China |
| Brand Name | HENGZE |
| Certification | CE |
| Model Number | HZ-4100 |

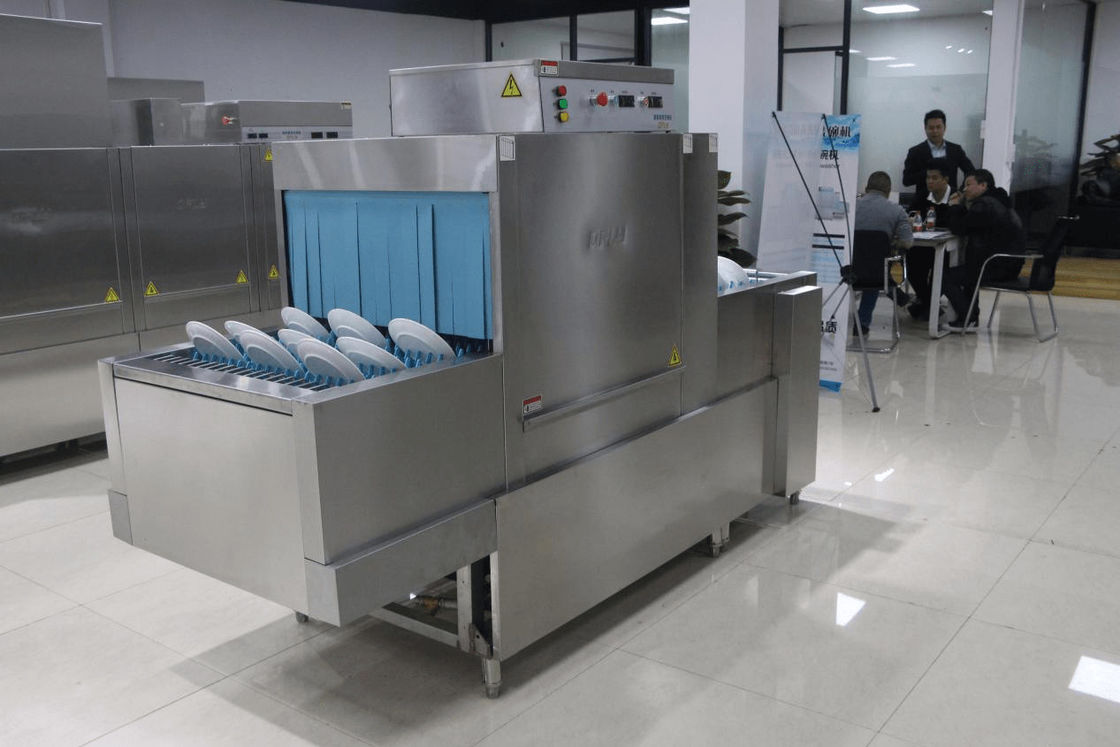

High Power Industrial Automatic Dishwasher Machine
Quicky Details :
| Brand | HENGZE |
| ProductName | Fliht -Type Dishwasher |
| Rated Voltage(V/N/Hz) | 380/3/50 |
| Rated Power(kW) | 6.15 |
| Electric Current(A) | 93.5 |
| Main Heating Power(kW) | 18 |
| Main Wash Pump Power(kW) | 1.5 |
| Rinse Heating Power(kW) | 30 |
| Rinse Pump Power(kW) | 0.37 |
| Water Tank Capacity(L) | 98 |
| Bubble Tank Capacity L | 590 |
Standard Features:
Automatic tank fill
Door safety switch
Rinse saver device
Common drain connection
All-purpose 24”-wide peg belt
Common hot water connection
Low-water tank heat protection
NEW Factory authorized startup
Exclusive Dual Rinse Technology
Heavy-gauge stainless construction
Easy-to-reach top-mounted controls
Stainless steel steam booster heater
Vent fan control connection provided
Conveyor shut-off shelf – unload end
Push-button start-stop station - load end
Stainless steel enclosure panels – front & ends
Electric eye energy sentinel (idle pump shut-off)
ENERGY STAR® Qualified (EUCC6 & EUCC8 only)
Recirculating flushing nozzles - load end with prewash
Chemical dispensing equipment connection provisions
Dish capacities up to 16,495 dishes per hour (NSF Listed)
Choice of tank heat: electric, steam coils or direct steam injectors
One piece stainless steel wash/rinse manifold system, easy to remove
Common electric connection (separate connection required for optional electric booster and blower-dryer)
| Model No | HZ-4100ARD | |
| ProductName | Flight-type Dishwasher Series | |
| Performance | ||
| Extemal Dimension(mm) | ||
| Length×Width×Height | 4200x862x2000 | |
| Electrial | ||
| Rated voltage(V/N/Hz) | 380/3/50 | |
| Rated Power(kW) | 60 | |
| Electric Curent(A) | 91 | |
| Main Heating Power(kW) | 18 | |
| Main WashPump Power(kW) | 1.5 | |
| Rinse Heating Power(kW) | 30 | |
| Rinse Pump Fower( kW) | 0.37 | |
| Configuration | ||
| Water Tank volume(L) | 98 | |
| Heating Pattern | Electrical | |
| Water MainWash Temperature(°C) | 55~65 | |
| Water Rinse Temperature(C) | 82-90 | |
| Washing Capacity(Dishes/H)(Pcs) | ||
| Washing Capacity(Dishes/H)(Pcs) | 3380-4920 | |
| Water Consumption(L/H) | ≤400 | |
| Dry | ||
| Drying Heating Power(kW) | 9 | |
| DryingPower(kW) | 0.75 | |
| Drying Temperature <°C) | 55-85 | |
About Us:
Guangdong Hengze Commercial Kitchen Equipment Co., Ltd.. was established in 2016 and located in Shunde Foshan, China. It is a leading enterprise in the commercial dishwasher equipment industry with strong technical strength and complete production lines.
We are a professional manufacturer specialized in commercial dishwasher equipment with many years experiences. Now we have 4 main dishwasher products including hood type dishwasher, rack conveyor dishwasher and Long line conveyor dishwasher,Bubble Washing Machine . High quality is the most important point for us to make sure our final customers have perfect satisfied using experience. By now, we have cooperated with many Hotels, Schools, Company groups, Hospitals and Restaurants also we have exported our dishwasher into many countries out of China rely on the advantage of our competitive price, high quality, fast producing and delivery.
Hengze has been committed to providing international standard quality commercial dishwasher products and one-stop solutions for all partners. We have the most advanced laser cutting machine, bending machine. From product development to production inspection, we have a complete set of quality control process. Also we have obtained CE ISO14001 ISO9001 certification. Selling well in all cities and provinces around China, the products are also exported to customers all of the world as the United States, Japan, Malaysia, Thailand, Singapore, Qatar, India, Africa, Kazakhstan and Saudi Arabia.
We have an experienced products development team making sure to provide OEM/ODM service with high-quality. Whether selecting a current product from our catalog or seeking engineering assistance for your requirement you can talk to our customer service center about your sourcing requirements. We must provide you professional services with nice price, high quality and fast delivery.
