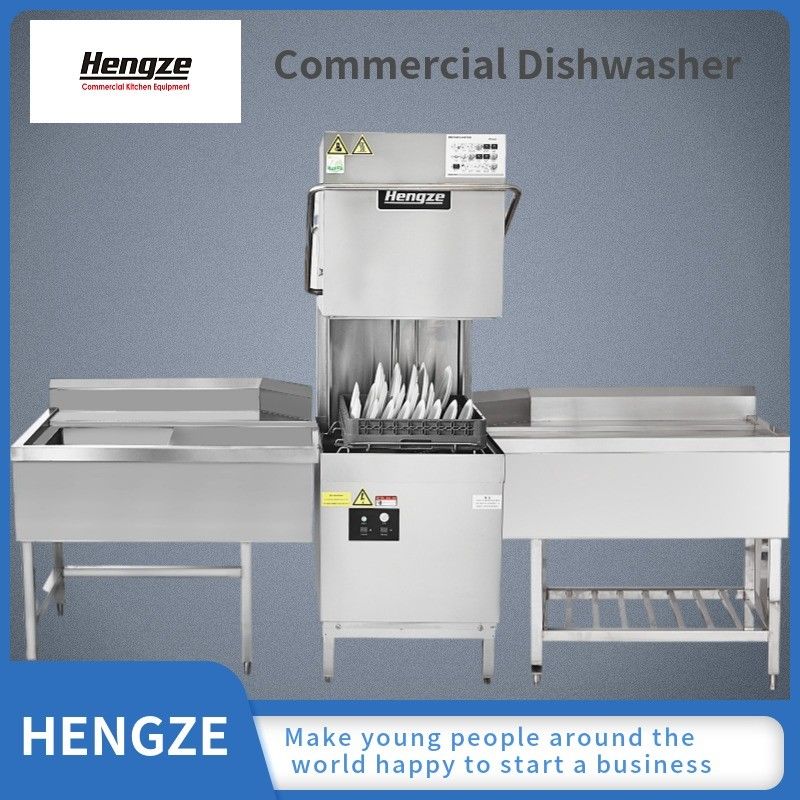

5.73KW Restaurant Hotel Kitchen Use Hood Type Freestanding Automatic Dishwasher Machine
Quick details:
| Wash pump(KW) | 0.75 |
| Total connected load(KW) | 12.75 |
| Total amps required(A) | 22.3 |
| Cross section of cable(mm²) | 6 |
| Rated current of circult breaker(A) | 40 |
| Heating | Electric |
| Clearance height(mm) | 420 |
| Max capacity(rack/hour) | 60 |
| Water consumption(liter/rack) | 1.5 |
| Wash tank capacity(l) | 32 |
| Booster capacity(l) | 14 |
| Wash temperature(℃) | 60-65 |
| Rinse temperature(℃) | 82-90 |
| Diameter of water inlet hose(in) | 3/4 |
| Diameter of drain pipi(in) | DN40 |
| Incoming water pressure(Kg/cm²) | 1.5KG |
| Incoming water hardness(g/l) | 0.034-0.103 |
Our Features:
1. Made from 304# High grade stainless steel material.
2. Smooth surface and easy to operate and clean.
3. Best choice for commercial kitchen restaurant catering, such as hotel, restaurant, cafeteria, supermarket, fast food,take-away, bar etc.
4 .Good quality and fast delivery.
5.OEM & ODM accepted.
Specification
| Model No | 60AS |
| ProductName | Hood Type Dishwasher |
| Heating Characteristics | Intelligent section heating |
| Lengthxwidth×Height | 835x715x1440 |
| Electrial | |
| Rated Voltage(V/N/Hz) | 380/3/50 |
| Rated Power(kW) | 5.73 |
| Electric Current(A) | 8.7 |
| Main Heating Power(kW) | 3 |
| Main Wash Pump Power(kW) | 0.73 |
| Rinse Heating Power(kW) | 5 |
| Rinse Pump Power(kW) | 0.15 |
| Configuration配置参数 | |
| Water Tank Capacity(L) | 25 |
| Heat Tank Capadity(L) | 10 |
| Power Line Specifications(mm2) | 4 |
| PowerLine Length(m) | 3 |
| Water lnlet(DN | 20 |
| Drainage(DN) | 32 |
| Water Pressure(MPa) | 0.15-0.35 |
| Water MainWash Temperature(°C) | 55-65 |
| Water Rinse Temperature(C) | 82-90 |
| Water Inlet Temperature(C) | 20-60 |
| Enter Water Hardness(Mg/L) | 34~103 |
| Minimum Water Flow(L/H) | 150 |
| Washing Cyle | 60/90/120 |
| Packing Size(mm) | 840*770"1560 |
