Automatic Dishwasher Machine
>
|
|
| Place of Origin | China |
| Brand Name | HENGZE |
| Certification | CE |
| Model Number | HZ-4100 |

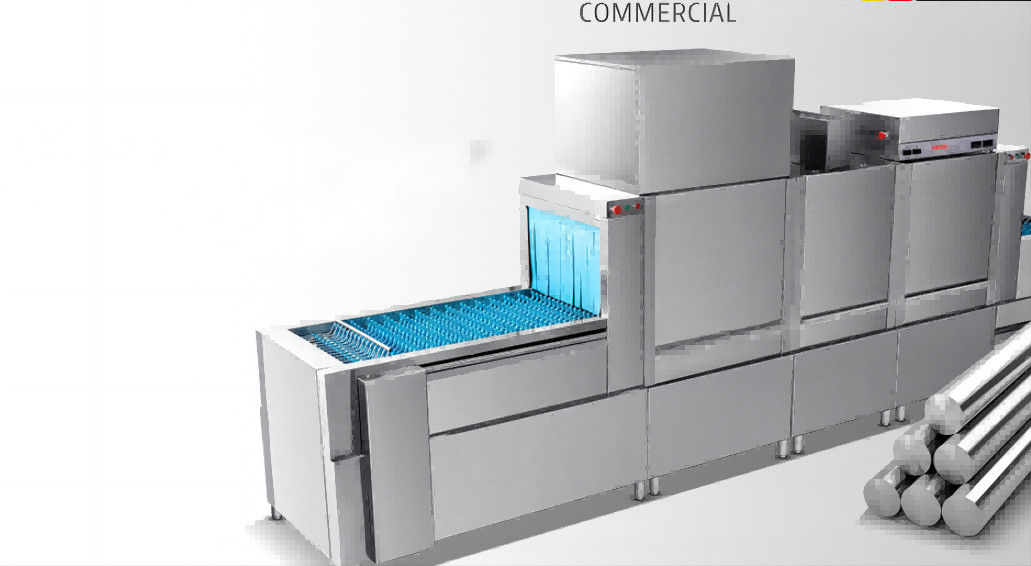

Commercial Super Quiet Grade Dishwasher High Power Automatic Dishwashe Machine
| Electric supply | 380V 50Hz | |
| Net weight | kg | 450 |
| Washing Capacity | ||
| Incoming water temperature | ℃ | 10 |
| Workload | Seat | 600-900 |
| Washing capacity(Dishes/H) | 3600-5300 | |
| Main wash | ||
| Wash tank volume | L | 90*2 |
| Main wash KW | KW | 9*2 |
| Wash pump | KW | 2.4*2 |
| Wash temperature | ℃ | 60~75 |
| Rinse | ||
| Rinse pump | KW | 0.1 |
| Rinse temperature | ℃ | 82~95 |
| Rinse heater | KW | 36 |
| Water consumption per hour | L | 390 |
Commercial Super Quiet Grade Dishwasher High Power Automatic Dishwashe MachineFeatures
1. Double tanks with double rinse arms: Significantly enhance the washing effect with high power pump, after rinsing,hot air sterilization and drying, especially fit for stainless steel cutlery,compact structure, easy to use
2. Wash and rinse arm design is reasonable: Top and bottom wash and rinse arms for good cleaning, washing efficiency; easy disassembly and cleaning without auxiliary tools
3. Excellent rinse temperature controlsyst: Rinse temperature for every wash reaching between 82～95℃
| ModelNo | P | A | R | D |
| Product Name | Pre-washing | Main -washing | Rinsing | Drying |
| Length | 800 | 800 | 600 | 800 |
| Width | 862 | 862 | 862 | 862 |
| Hsmt | 1426 | 1426 | 1426 | 2000 |
| Electrial | ||||
| Rated Voltagg(V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 |
| Main Heating Power(kN) | 18 | |||
| Main Wash Pump Power(kW) | 1.5 | 1.5 | ||
| Rinse Heating Power(kW) | 30 | |||
| Rinse Pump Power(kw) | 0.37 | |||
| Water Tank Capacity(L) | 98 | 98 | 24 | |
| WaterInlet(DN) | 3/4°- φ10 | |||
| Drainage(DN) | 50 | 50 | 50 | |
| Water Pressure(MPa) | 0.1～0.35 | |||
| Main Wash Temperature | 55-65 | |||
| Water Rinse Temperature(℃) | 82～ 90 | |||
| WaterInlet Temperature CC) | 10～60 | |||
| Enter Water Hardness(Mg/L) | 34～103 | |||
| Max capacity (rack /hour) PBRDD量 | 7700pcs/H(8inch) | |||
| DryingHeatingPower (kW) | 9 | |||
| DryingPower (kW) | 0.75 | |||
| Drying Temperature (℃) | 55～85 | |||
About Us:
Guangdong Hengze Commercial Kitchen Equipment Co., Ltd.. was established in 2016 and located in Shunde Foshan, China. It is a leading enterprise in the commercial dishwasher equipment industry with strong technical strength and complete production lines.
We are a professional manufacturer specialized in commercial dishwasher equipment with many years experiences. Now we have 4 main dishwasher products including hood type dishwasher, rack conveyor dishwasher and Long line conveyor dishwasher,Bubble Washing Machine . High quality is the most important point for us to make sure our final customers have perfect satisfied using experience. By now, we have cooperated with many Hotels, Schools, Company groups, Hospitals and Restaurants also we have exported our dishwasher into many countries out of China rely on the advantage of our competitive price, high quality, fast producing and delivery.
Hengze has been committed to providing international standard quality commercial dishwasher products and one-stop solutions for all partners. We have the most advanced laser cutting machine, bending machine. From product development to production inspection, we have a complete set of quality control process. Also we have obtained CE ISO14001 ISO9001 certification. Selling well in all cities and provinces around China, the products are also exported to customers all of the world as the United States, Japan, Malaysia, Thailand, Singapore, Qatar, India, Africa, Kazakhstan and Saudi Arabia.
We have an experienced products development team making sure to provide OEM/ODM service with high-quality. Whether selecting a current product from our catalog or seeking engineering assistance for your requirement you can talk to our customer service center about your sourcing requirements. We must provide you professional services with nice price, high quality and fast delivery.
