| Place of Origin | China |
| Brand Name | HENGZE |
| Certification | CE |
| Model Number | HZ-4100 |

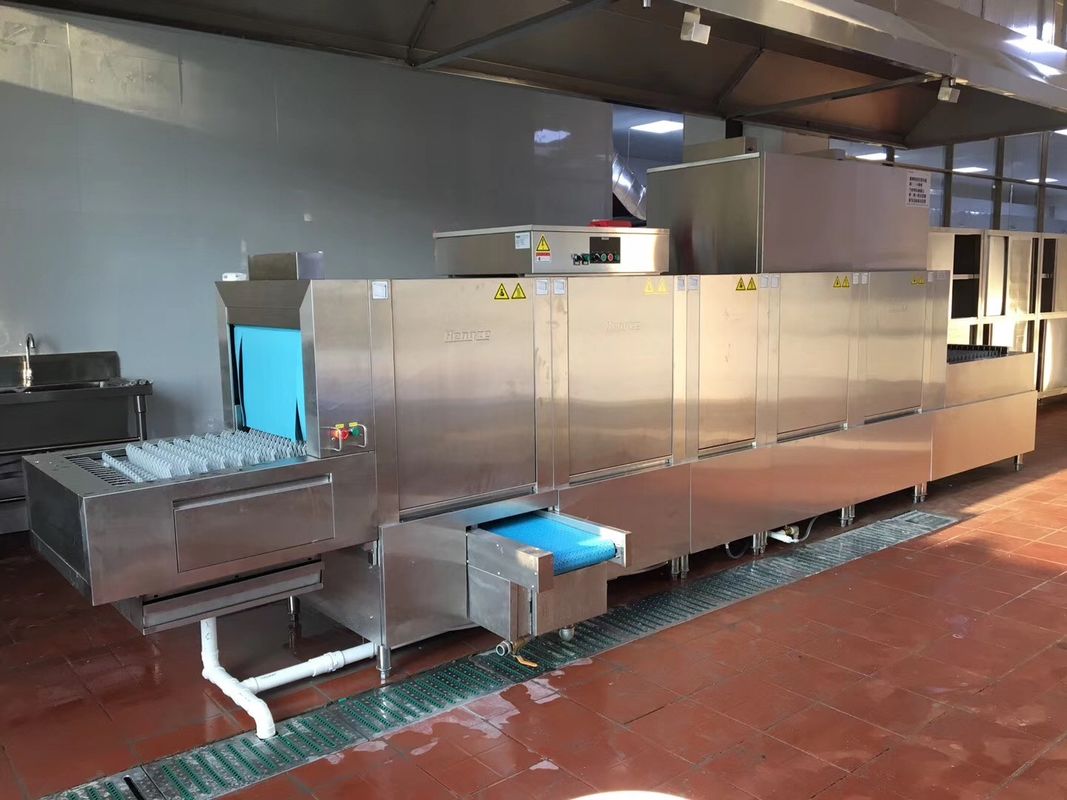

Triple Tanks Commercial Flight Type Dishwasher
Quick Details
| Product Size: | 2000*730*1850mm | Operating Voltage: | 380V/50HZ |
| Suitable for diners: | 500-1000 people | Total power: | 58KW |
| Washing height: | 440mm | Main wash temperature: | 60-65℃ |
| Washing capacity | 100-150(baskets/hour) | Rinsing temperature: | 80-90℃ |
| Water consumption | 2.5(basket/liter) | Size of water Inlet : | G1/2" |
| Inlet water pressure | 1-3(Kg.f/m2) | Drain size: | Φ50 |
| Machine configuration | double cylinder double spray + rinsing and disinfection | ||
Features:
Triple tanks with double rinse arms,slagging, double dryers
Significantly enhance the washing effect with high power pump, slagging machine enhance the wash speed and save workload,after rinsing,hot air sterilization and dr ying, especially fit for stainless steel and archaize ceramicscutler
Wash and rinse arm design is reasonable
compact structure, easy to use
Top and bottom wash and rinse arms for good cleaning, washing efficiency; easy disassembly and cleaning without auxiliary tools
Excellent rinse temperature control system
Rinse temperature for ever y wash reaching between 82～95℃
Safety protection device
Without taking the bowls in time, the dishwasher will automatically shut down
Specification
| ModelNo | EARD | |
| Product Name | Triple Tanks Commercial Dishwashing Machine With Double Rinse Arms Slagging | |
| ength×width×Height | 5100x862+450x2000 | |
| Rated voltage(V/N/Hz) | 380/3/50 | |
| Rated Power(kW) | 61.56 | |
| ElecricCurrent(A | 93.5 | |
| Main Heating Power(kV) | 18 | |
| Main Wash Pump Power(k) | 1.5 | |
| Rinse Heating Power(kwj | 30 | |
| Rinse Pump Power(kW) | 0.37 | |
| Slag removal power(kw) | 1.56 | |
| Water Tank volume(l) | 98 | |
| Capacty of slag removalcylinder(L) | 80 | |
| Heating Pattemn | 电/Electrka | |
| Water Main Wash Temperature(℃) | 55~65 | |
| Water Rinse Temperature(℃) | 82~90 | |
| Washing Capacity(Dishes/H)(Pcs) | 4300~6400 | |
| Water Consumption (L/H) | ≤600 | |
| Drying Heating Power (kw) | 9 | |
| Drying Power (kw) | 0.75 | |
| Drying Temperature 〇C) | 55~85 | |
