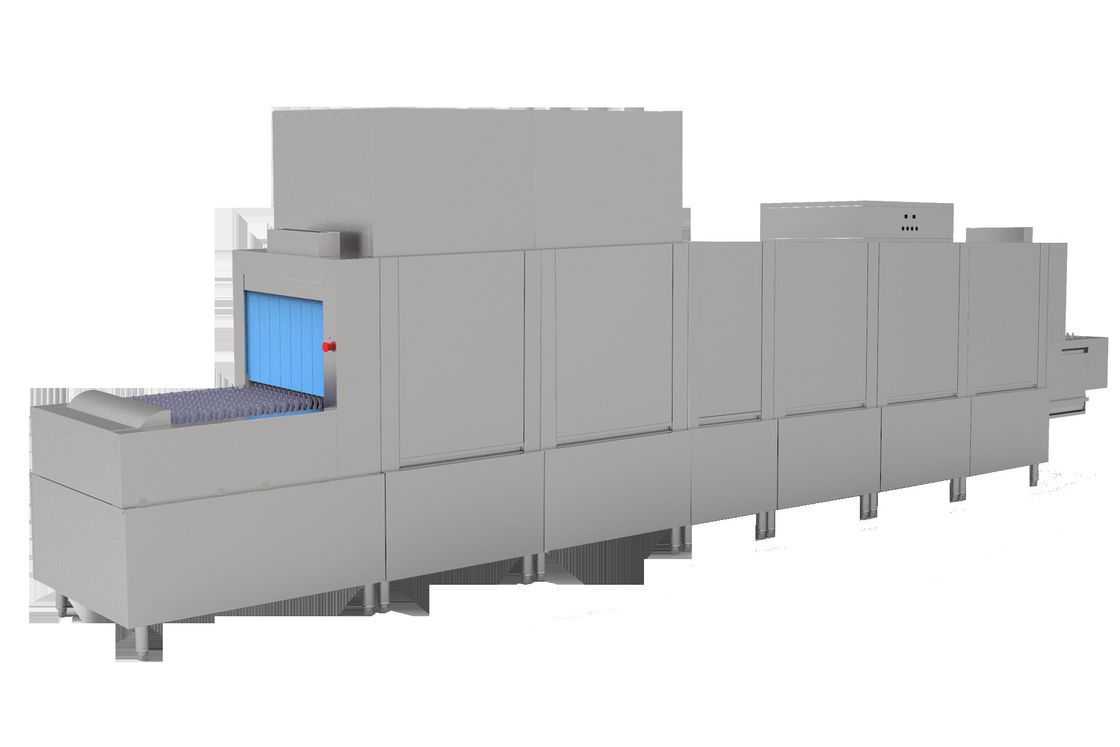

Flight Type Dishwasher
>
|
|
| Place of Origin | China |
| Brand Name | HENGZE |
| Certification | CE |
| Model Number | HZ-4100 |
Quick Details
After-sales Service Provided: Free spare parts Warranty: 1 Year
Application: Hotel, Commercial Power Source: Electric
App-Controlled: NO Private Mold: NO
Control Type:Semi-Integrated Style:Traditional
Housing Material:Stainless steel Inner Material:Stainless steel
|
|
Features:
1.Rotary washing arm and rinsing ,360" cleaning has no dead corner, and all washing parts can be removed for easy cleaning.
2.The machine is equipped with high performance imported washing pump, stable and efficient performance, to ensure the washing effect of over 82C high temperature rinsing water sterilization,
3 High temperature decontamination clean health.
Specifications:
| ModelNo | EARD | |
| Product Name | Triple Tanks Commercial Dishwashing Machine With Double Rinse Arms Slagging | |
| ength×width×Height | 5100x862+450x2000 | |
| Rated voltage(V/N/Hz) | 380/3/50 | |
| Rated Power(kW) | 61.56 | |
| ElecricCurrent(A | 93.5 | |
| Main Heating Power(kV) | 18 | |
| Main Wash Pump Power(k) | 1.5 | |
| Rinse Heating Power(kwj | 30 | |
| Rinse Pump Power(kW) | 0.37 | |
| Slag removal power(kw) | 1.56 | |
| Water Tank volume(l) | 98 | |
| Capacty of slag removalcylinder(L) | 80 | |
| Heating Pattemn | 电/Electrka | |
| Water Main Wash Temperature(℃) | 55~65 | |
| Water Rinse Temperature(℃) | 82~90 | |
| Washing Capacity(Dishes/H)(Pcs) | 4300~6400 | |
| Water Consumption (L/H) | ≤600 | |
| Drying Heating Power (kw) | 9 | |
| Drying Power (kw) | 0.75 | |
| Drying Temperature 〇C) | 55~85 | |
a)Separate power supply all - pole disconnection and water source switch manual valves must be installed.For cutting off the power and water supply of the machine respectively
b)The power supply, inlet pipeline, drainage pipeline, steam pipeline and ventilation pipeline connected with the machine must meet the relevant national standards
c)External piping connected to the machine is installed on site
