Catering / Industrial Professional Dishwashing Machine Stable Performance
  • Catering / Industrial Professional Dishwashing Machine Stable Performance
  • Catering / Industrial Professional Dishwashing Machine Stable Performance

Catering / Industrial Professional Dishwashing Machine Stable Performance

Place of Origin China
Brand Name HENGZE
Certification CE/CB
Model Number HZ-4100-ARD
Product Details
WaterInlet(DN):
3/4°- φ10
Drainage(DN) Y:
50
Material:
304 SS
Brand:
Hengze
Type:
Dishwashing Machine
Usage:
Industrial Commercial
High Light:

Catering Professional Dishwashing Machine

,

Industrial Professional Dishwashing Machine

,

Industrial Dishwashing Machine Stable

Product Description

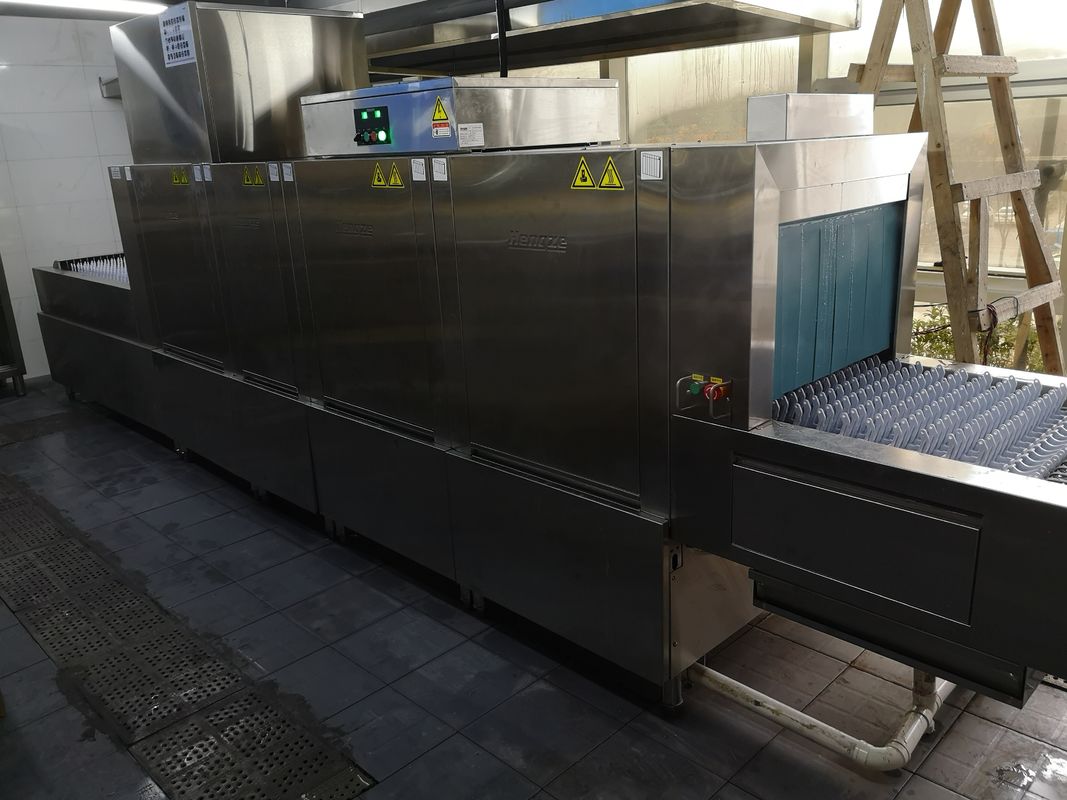

Tunnel Lave Vaisselle Professional Catering Flight Type Dishwasher



Main Features



1 Quick cleaning

2 Two-sided workbench, more convenient and easy to operate.

3 Stable performance

4 Save both time and labour, save cost over 60%.

5 Directly put and collect the tableware, more clean

6 You can also wash fruits and vegetables

7  Adjustable speed, more choices.



Specification



ModelNo P A R D
Product Name prewash Main wash Rinse Dry
Rated Voltagg(V/Hz) 380/50 380/50 380/50 380/50
Main Heating Power(kN)   18
Main Wash Pump Power(kW) 1.5 1.5
Rinse Heating Power(kW)     30
Rinse Pump Power(kw)     0.37
Water Tank Capacity(L) 98 98 24
WaterInlet(DN)     3/4°- φ10
Drainage(DN) 50 50 50
Water Pressure(MPa)     0.10.35
Catering / Industrial Professional Dishwashing Machine Stable Performance 0Catering / Industrial Professional Dishwashing Machine Stable Performance 1Catering / Industrial Professional Dishwashing Machine Stable Performance 2Catering / Industrial Professional Dishwashing Machine Stable Performance 3 er Main Wash Temperature   55-65
Water Rinse Temperature()     82 90
WaterInlet Temperature CC)     1060
Enter Water Hardness(Mg/L)     34103
Max capacity (rack /hour) PBRDD 7700 bowl /H(8Inch)
DryingHeatingPower (kW) 9
DryingPower (kW) 0.75
Drying Temperature () 5585







Production Discussion



Voltage:380V/50Hz Tank Capacity:2*98L

Total Power(Electric):61.5 KW Washing Tanks Heating Tube Power:2*9kW

Washing Tanks Pump Motor Power:2*1.5kW Transfer Power:0.37kW

Dryer Heating Tube Power:9kW Dryer Fan Power:0.75kW

Dimensional Spray Heating Tube Power:30kW Dimensional Spray Water Consumption:300L/H

Dryer Air Flow:4000m³/H Conveyor Speed:2m/min

Washing:4360PCS Water Temperature:10-50℃

Inlet Diameter:20mm Drain Diameter:50mm

Cable:≥GB 35mm² Water Pressure:1.055kg/cm²~1.76kg/cm²

*Assembled cleaning spray arm and nozzles, not only easy to disassemble, easy to clean. Oval wash range, leaving cleaning without dead ends

*Double-insulated door open design,to avoid the inconvenience and danger caused by the use of steam

Frequentcy adjustable speed transmission, according to the customer's own rhythm, freedom of choice

*Transmission protection system to prevent tableware slipping chain sheet, damage to equipment caused



About Us



Guangdong Hengze Commercial Kitchen Equipment Co., Ltd.. was established in 2016 and located in Shunde Foshan, China. It is a leading enterprise in the commercial dishwasher equipment industry with strong technical strength and complete production lines.

We are a professional manufacturer specialized in commercial dishwasher equipment with many years experiences. Now we have 4 main dishwasher products including hood type dishwasher, rack conveyor dishwasher and Long line conveyor dishwasher,Bubble Washing Machine . High quality is the most important point for us to make sure our final customers have perfect satisfied using experience. By now, we have cooperated with many Hotels, Schools, Company groups, Hospitals and Restaurants also we have exported our dishwasher into many countries out of China rely on the advantage of our competitive price, high quality, fast producing and delivery.

Hengze has been committed to providing international standard quality commercial dishwasher products and one-stop solutions for all partners. We have the most advanced laser cutting machine, bending machine. From product development to production inspection, we have a complete set of quality control process. Also we have obtained CE ISO14001 ISO9001 certification. Selling well in all cities and provinces around China, the products are also exported to customers all of the world as the United States, Japan, Malaysia, Thailand, Singapore, Qatar, India, Africa, Kazakhstan and Saudi Arabia.

We have an experienced products development team making sure to provide OEM/ODM service with high-quality. Whether selecting a current product from our catalog or seeking engineering assistance for your requirement you can talk to our customer service center about your sourcing requirements. We must provide you professional services with nice price, high quality and fast delivery.
