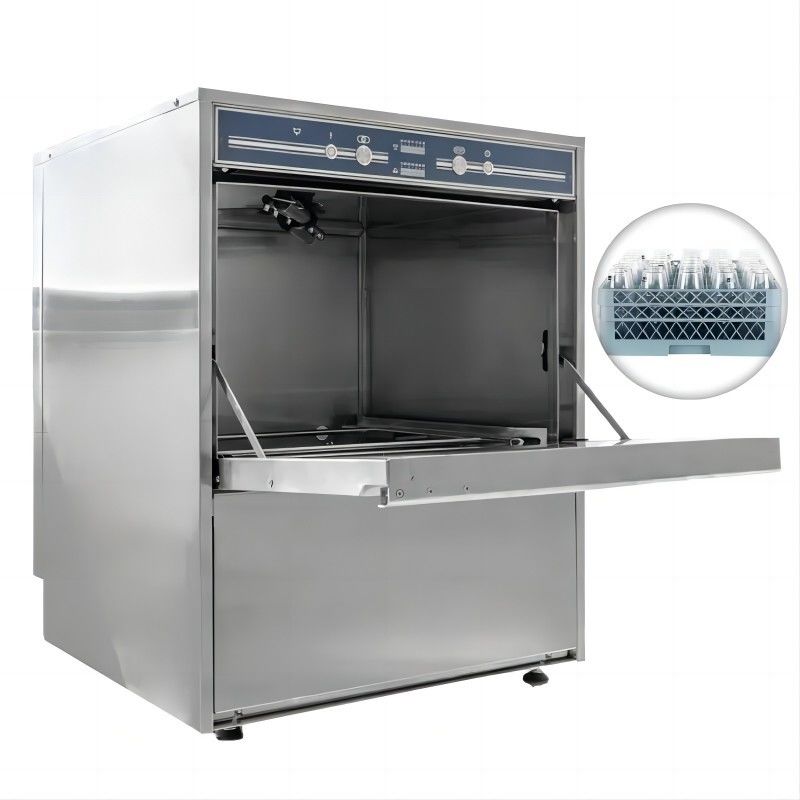

OEM Commercial Undercounter Dishwasher Multifunctional Countertop Dishwasher CE
  • OEM Commercial Undercounter Dishwasher Multifunctional Countertop Dishwasher CE

OEM Commercial Undercounter Dishwasher Multifunctional Countertop Dishwasher CE

Place of Origin China
Brand Name HENGZE
Certification CE
Model Number HZ-40E
Product Details
Model No:
HZ-40E
Material:
304#ss
Brand:
HENGZE
High Light:

OEM Commercial Undercounter Dishwasher

,

Commercial Undercounter Dishwasher CE

,

Multifunctional Countertop Dishwasher

Product Description



Restaurant Bar Cafe Use Commercial Automatic Glass Washer with Countertop Multifunctional Under Counter Dishwashers



Quick Detail:



After-sales Service Provided:

Free spare parts

Power (W):8100 Voltage (V):220V

Advantage:

Save Electricity,Professional Service,Efficient

Warranty:1 Year, 12 Months Inner Material:Stainless steel

Place of Origin:

Guangdong, China

Usage: Restaurant Dish Washer Machine
Application:Commercial, Commercial, Restaurant,Canteen,Hotel Housing Material:Stainless steel

Brand Name:

Hengze

Certification:ISO9001,CE,HACCP
Power Source:Electric Style: Traditional Model Number:HZ-40E Washing Capacity: 60 Baskets/hour





Main Feature:



Operation Instruction

Firstly, turn on the water supply switch and add water to the given position.

Secondly, turn on the heating switch and heat water to 75℃~80℃,then pour some detergent into the hot water tank.

Thirdly, turn on the washing switch and put dirty dishes on the machine orbit, then it will begin washing.

Finally, when it finish washing, you can turn on the blow-down valve and wait the sewage completely discharged.

Attentions

Don’t wash the handcrafted dishes which were used to decorate. Don’t put silverware together with other metal.

Don’t let the food on the dishes become hard or leave too much food residue in case they will block the strainer.





Specification:



Name/Model
HZ-40E
Requirements
220V 50Hz 1N/380V 50Hz 3N
Incoming water temperature(℃)
10
Tank heater(KW)
3
Booster heater(KW)
4.5
Wash pump(KW)
0.6
Total connected load(KW)
8.1
Total amps required(A)
21.3
Cross section of cable(mm²)
4
Rated current of circult breaker(A)
16
Heating
Electric
External dimension(mm)
600*601*825
Clearance height(mm)
310
Max capacity(rack/hour)
60
Water consumption(liter/rack)
2.5
Wash tank capacity(l)
35
Booster capacity(l)
5.5
Wash temperature(℃)
60-65
Rinse temperature(℃)
82-90
Diameter of water inlet hose(in)
3/4
Diameter of drain pipi(in)
DN25
Incoming water pressure(Kg/cm²)
1.5KG
Incoming water hardness(g/l)
0.034-0.103
