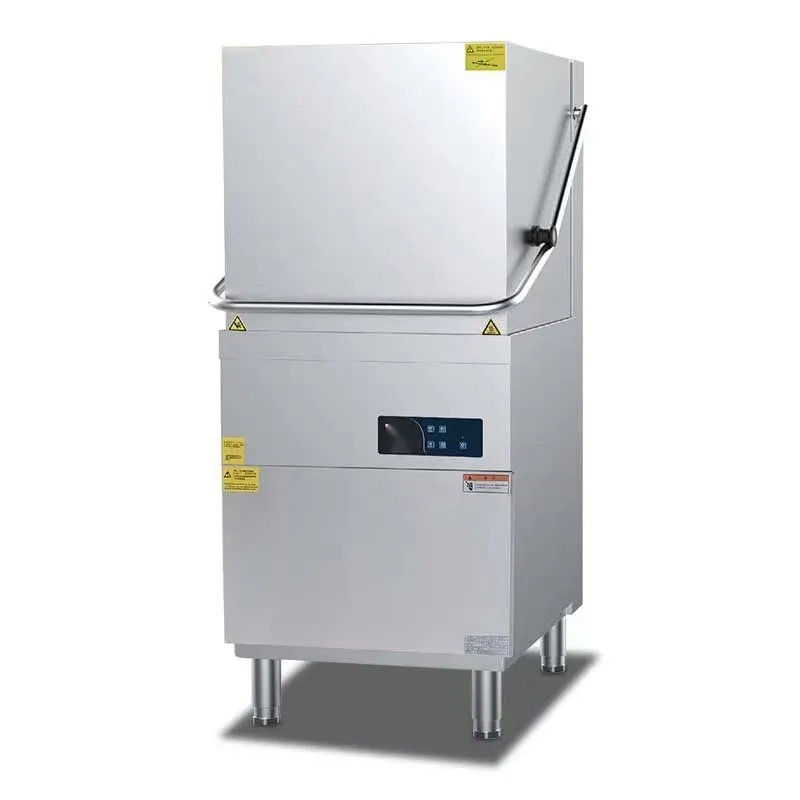

ODM High Temp Commercial Undercounter Dishwasher 380V Hood Type
  • ODM High Temp Commercial Undercounter Dishwasher 380V Hood Type
  • ODM High Temp Commercial Undercounter Dishwasher 380V Hood Type

ODM High Temp Commercial Undercounter Dishwasher 380V Hood Type

Place of Origin China
Brand Name HENGZE
Certification CE
Model Number HZ-2400
Product Details
Inner Material::
304 #SS
Style::
Hood Type
Packing::
Standard Wooden Case
Payment Term:
T/T Or Western Union
High Light:

ODM Commercial Undercounter Dishwasher

,

Commercial Undercounter Dishwasher 380V

,

High Temp Undercounter Dishwasher

Product Description
Commercial Hood Type Industrial Undercounter Dishwasher High Temp



Quick Details :

After-sales Service Provided
Video technical support, Field installation, Online support
Power
15.8KW
Voltage
380V
Material
Full Stainless Steal
Installation
100% Freestanding
Certification
CE/ISO9001

Modular Combination Advantages of Commercial Dishwasher

1 Up and down rotary washing and rinsing, all-round coverage of dishes to ensure the cleaning effect

2 Adopting highly intelligent and precise control technology, energy consumption is 20-30% less than traditional ones

3 Push-button operation panel

4 Unique laminated door design, both heat preservation and heat insulation, can effectively reduce noise

5 The whole machine is made of S.S. 304, and all the spare parts are made of high quality products. High efficiency Italian water pump to ensure washing power

6 Fully enclosed base plate, insect and rodent proof design

7 Reasonable and compact size to ensure the washing effect while minimizing the space occupied in the kitchen

8 Large LCD operation panel, simple to operate

9 With energy-saving module (patented technology), using the waste heat recovery function, saving energy consumption by 14%

10 Equipped with emergency stop switch, convenient for the operator to stop the operation of the machine in an emergency

.


Production Details:


Model No 203E
Product Name Rack Conveyor Dishwasher
Performance
External Dimension(mm)
Length×Width×Height 1105x772x1650
Electrial
Rated Voltage(V/N/Hz) 380/3/50
Rated Power (kW) 43.75
Electric Current(A) 66.5
Main Heating Power(kW) 12
Main Wash Pump Power(kW) 1.5
Rinse Heating Power(kW) 30
Configuration
Water Tank Capacity(L) 75
Power Line Specifications(mm) 25
Water Inlet(DN) 20
Drainage(DN) 50
Water Pressure(MPa) 0.1 ~ 0.35
Water Main Wash Temperature(℃) 55-65
Water Rinse Temperature(℃) 82~90
Water Inlet Temperature(℃) 10~60
Minimum Water Flow(L/H) 405
Exhaust Inlet(m3/min) 5.7
Exhaust Outlet(m3/min) 11.3
Packing Size(mm) 1215*850*1770
Net Weight(kg) 218
Gross Weight(kg) 280




About Us :

Guangdong Hengze Commercial Kitchen Equipment Co., Ltd.. was established in 2016 and located in Shunde Foshan, China. It is a leading enterprise in the commercial dishwasher equipment industry with strong technical strength and complete production lines.
We are a professional manufacturer specialized in commercial dishwasher equipment with many years experiences. Now we have 4 main dishwasher products including hood type dishwasher, rack conveyor dishwasher and Long line conveyor dishwasher,Bubble Washing Machine . High quality is the most important point for us to make sure our final customers have perfect satisfied using experience. By now, we have cooperated with many Hotels, Schools, Company groups, Hospitals and Restaurants also we have exported our dishwasher into many countries out of China rely on the advantage of our competitive price, high quality, fast producing and delivery.
Hengze has been committed to providing international standard quality commercial dishwasher products and one-stop solutions for all partners. We have the most advanced laser cutting machine, bending machine. From product development to production inspection, we have a complete set of quality control process. Also we have obtained CE ISO14001 ISO9001 certification. Selling well in all cities and provinces around China, the products are also exported to customers all of the world as the United States, Japan, Malaysia, Thailand, Singapore, Qatar, India, Africa, Kazakhstan and Saudi Arabia.
We have an experienced products development team making sure to provide OEM/ODM service with high-quality. Whether selecting a current product from our catalog or seeking engineering assistance for your requirement you can talk to our customer service center about your sourcing requirements. We must provide you professional services with nice price, high quality and fast delivery.


ODM High Temp Commercial Undercounter Dishwasher 380V Hood Type 0




ODM High Temp Commercial Undercounter Dishwasher 380V Hood Type 1
ODM High Temp Commercial Undercounter Dishwasher 380V Hood Type 2
ODM High Temp Commercial Undercounter Dishwasher 380V Hood Type 3
