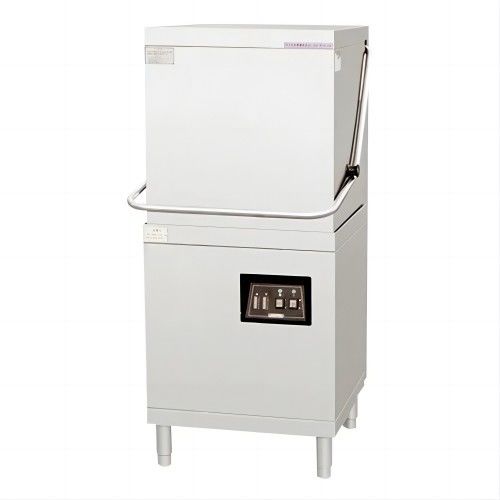

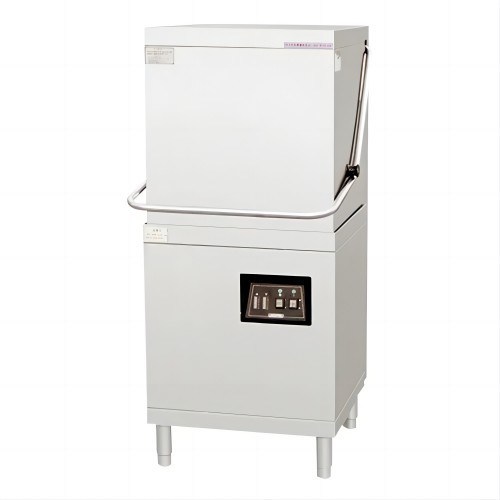

Commercial Dishwasher Machine
>
|
|
| Place of Origin | China |
| Brand Name | HENGZE |
| Certification | CE |
| Model Number | HZ-60AS |
Quick Details
|
Name |
Uncovery Dishwasher
|
Size |
700*750*1540mm |
|
Model |
HZ-60AS |
Customized |
support |
|
Material & thickness |
stainless steel 304/201 |
Certification |
CE,ISO9001,ISO14001 GB/T28001
|
|
Power consumption |
15.8kkw |
Max washing height |
420mm |
|
Water consumption |
2.5 |
Washing capacity |
60 |
Installation Requires Connection
1 Power: 380V / 50Hz / 3p (three-phase five-wire) cable ≥6mm2
2 lnlet diameter: 6(ft); Drain diameter: 32mm
3 water pressure:0.5~6bar
4 Water temperature:10 '℃ ~65 ℃
5 Water Hardness: 0.034~0.103g / L
Specifications:
| Lengthxwidth×Height | 835x715x1440 | |
| Rated Voltage(V/N/Hz) | 380/3/50 | |
| Rated Power(kW) | 5.73 | |
| Electric Current(A) | 8.7 | |
| Main Heating Power(kW) | 3 | |
| Main Wash Pump Power(kW) | 0.73 | |
| Rinse Heating Power(kW) | 5 | |
| Rinse Pump Power(kW) | 0.15 | |
| Configuration | ||
| Water Tank Capacity(L) | 25 | |
| Heat Tank Capadity(L) | 10 | |
| Power Line Specifications(mm2) | 4 | |
| PowerLine Length(m) | 3 | |
| Water lnlet(DN | 20 | |
| Drainage(DN) | 32 | |
| Water Pressure(MPa) | 0.15-0.35 | |
| Water MainWash Temperature(°C) | 55-65 | |
| Water Rinse Temperature(C) | 82-90 | |
| Water Inlet Temperature(C) | 20-60 | |
| Enter Water Hardness(Mg/L) | 34~103 | |
| Minimum Water Flow(L/H) | 150 | |
| Washing Cyle | 60/90/120 | |
| Packing Size(mm) | 840*770"1560 | |
| Net Weight(kg) | 123 | |
| Gros5Weight(kg | 133 | |
