Industrial Dish Washing Machine
>
|
| Place of Origin | China |
| Brand Name | HENGZE |
| Certification | CE |
| Model Number | HZ-203E |

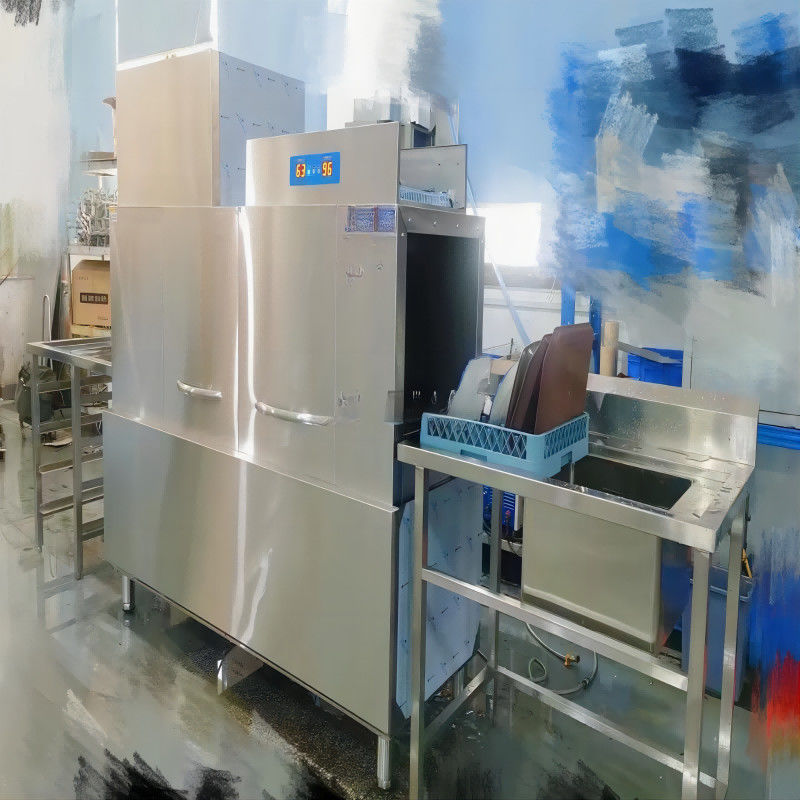

380V 24KW Professional Restaurant Commercial Tunnel Type Industrial Dishwashing Machine
Product Description:
|
Place of Origin
|
China
|
|
voltage&Power
|
380V/24KW
|
|
dimension
|
1040*780*1620mm
|
|
Gross Weight
|
150KG/PCS
|
|
washing capacity
|
120 basket/H
|
|
water consumption
|
270L/H
|
|
main temperature
|
60-65℃
|
|
rinse temperature
|
80-90℃
|
|
Inlet water pressure (kg/C㎡)
|
2-5kg/C㎡
|
|
Inlet size
|
G1/2"
|
|
drain size
|
θ50
|
|
washing basket inlet size
|
500*400mm
|
Main Features:
1 Stable control system, simple mechanical operation panel, with LED temperature display, alarm prompt and fault diagnosis
2 Inclined track to keep the tableware at the best cleaning angle
3 When the tableware enters the machine, the infrared sensor starts the washing process
4 Each cleaning module is equipped with 8 concave anti-blocking spray feeding arms to ensure a larger range of fan-shaped water flow and better cleaning performance;
5 The wash arm and spray arm adopt a pull-out structure, which is more convenient to disassemble and clean
6 Double-channel spraying system, better spraying effect, effectively reducing water consumption;
7 Import and export double gear design, reduce chain wear
Specifition:
| Model No | 203E |
| Product Name | Rack Conveyor Dishwasher |
| Performance | |
| External Dimension(mm) | |
| Length×Width×Height | 1105x772x1650 |
| Electrial | |
| Rated Voltage(V/N/Hz) | 380/3/50 |
| Rated Power (kW) | 43.75 |
| Electric Current(A) | 66.5 |
| Main Heating Power(kW) | 12 |
| Main Wash Pump Power(kW) | 1.5 |
| Rinse Heating Power(kW) | 30 |
| Configuration | |
| Water Tank Capacity(L) | 75 |
| Power Line Specifications(mm) | 25 |
| Water Inlet(DN) | 20 |
| Drainage(DN) | 50 |
| Water Pressure(MPa) | 0.1 ～ 0.35 |
| Water Main Wash Temperature(℃) | 55-65 |
| Water Rinse Temperature(℃) | 82~90 |
| Water Inlet Temperature(℃) | 10~60 |
| Minimum Water Flow(L/H) | 405 |
| Exhaust Inlet(m3/min) | 5.7 |
| Exhaust Outlet(m3/min) | 11.3 |
| Packing Size(mm) | 1215*850*1770 |
| Net Weight(kg) | 218 |
| Gross Weight(kg) | 280 |
