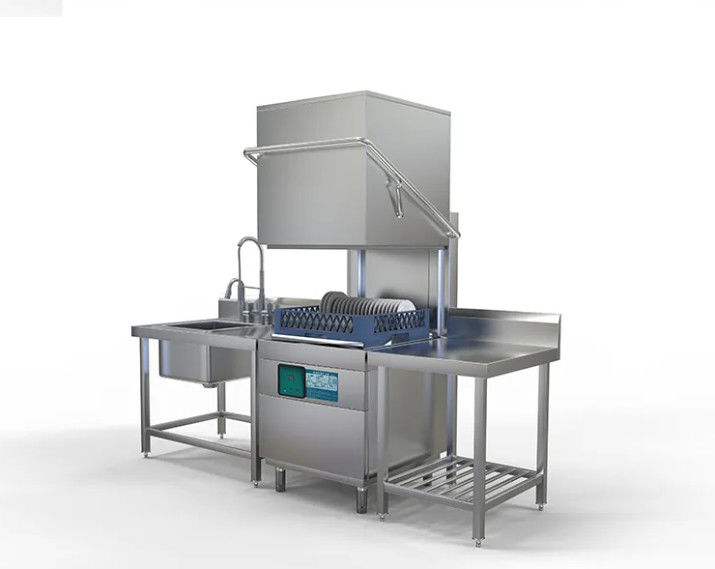

Commercial Kitchen Dishwasher
>
|
|
| Place of Origin | China |
| Brand Name | HENGZE |
| Certification | CE |
| Model Number | HZ-60AS |
| Product name:Long Line dishwasher | Control Type:Fully-Integrated |
| Certificate:ISO9001 ISO14001 CE | Voltage (V):380 |
| Material:304 stainless steel | Control Type:Fully-Integrated |
| Inner Material:Stainless steel | Place of Origin:Guangdong, China |
Main Features
1 Quick cleaning
2 Two-sided workbench, more convenient and easy to operate.
3 Stable performance
4 Save both time and labour, save cost over 60%.
5 Directly put and collect the tableware, more clean
6 You can also wash fruits and vegetables
7 Adjustable speed, more choices.
| Lengthxwidth×Height | 835x715x1440 | |
| Rated Voltage(V/N/Hz) | 380/3/50 | |
| Rated Power(kW) | 5.73 | |
| Electric Current(A) | 8.7 | |
| Main Heating Power(kW) | 3 | |
| Main Wash Pump Power(kW) | 0.73 | |
| Rinse Heating Power(kW) | 5 | |
| Rinse Pump Power(kW) | 0.15 | |
| Configuration | ||
| Water Tank Capacity(L) | 25 | |
| Heat Tank Capadity(L) | 10 | |
| Power Line Specifications(mm2) | 4 | |
| PowerLine Length(m) | 3 | |
| Water lnlet(DN | 20 | |
| Drainage(DN) | 32 | |
| Water Pressure(MPa) | 0.15-0.35 | |
| Water MainWash Temperature(°C) | 55-65 | |
| Water Rinse Temperature(C) | 82-90 | |
| Water Inlet Temperature(C) | 20-60 | |
| Enter Water Hardness(Mg/L) | 34~103 | |
| Minimum Water Flow(L/H) | 150 | |
| Washing Cyle | 60/90/120 | |
| Packing Size(mm) | 840*770"1560 | |
| Net Weight(kg) | 123 | |
| Gros5Weight(kg | 133 | |
1.Double layer construction, low noise, better heat insulation effect
2.Upper and lower rotating washing and rinse system. Washing more reasonable.
3.Mechanical button design easy to operate
4.Reliable conveyor system with automatic overload protection device so that dishes and plates can be directly put on the track, thus no need to sort wares and put them in the baskets, greatly reducing labor intensity and working time.
5.Exit end is equipped with limit switch to avoid damages on the wares when nobody takes them off the conveyor
6.It's convenient to assemble and disassemble up/down washing arms. It can be locked tightly with a buckle
7.With flexible modular design you can choose suitable model according to the size of the location.
